CCTV power supply from China manufacturer - Hangzhou Sanke Electrical Co.,Ltd.

Price:	8.0~10.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SKK-S-100-12

Production Capacity: 20000pieces per month

Delivery Date: 30 days after receiving the...

Output Type: Single

Brand Name: SAKO

Output Frequency: 50/60Hz

Means of Transport: Ocean,Air

Packing: 0.61kgs,36pcs/22.5Kg/0.040C...

Input Voltage: 220V

Output Power: 51 - 100W

Output Voltage: 12V

Output Current: 8.5A

1.Input Voltage:110/220VAC
2.Output:DC12V 8.5A
3.Short circuit,overload,over voltage protection
4.Size:199x97x38mm
5.LED indicator

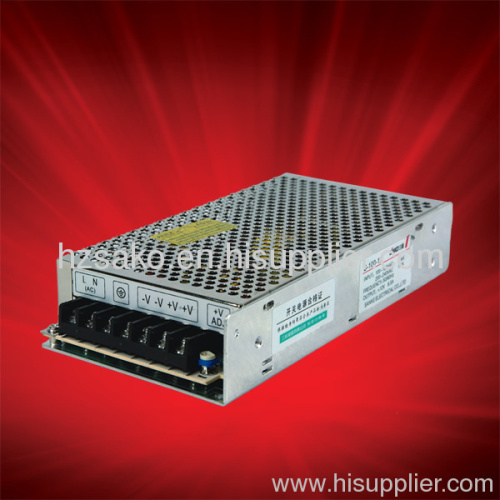

100W Single Output Switching Power Supply
Features: High efficiency, high reliability, low cost AC input range selected by switch 100% full load burn-in test Protection: Short circuit /Overload Fixed switching frequency at 25KHz Cooling by free air convection 1 year warranty (CE certificate) Dimensions: 1999738mm (LWH)
MODEL		SKK-S- 100-5	SKK-S- 100-7.5	SKK-S- 100-12	SKK-S- 100-15	SKK-S- 100-24	SKK-S- 100-27	SKK-S- 100-48
OUTPUT	DC Voltage	5V	.7.5V	12V	15V	24V	27V	48V
	Voltage Tolerance	±2%	±2%	±1%	±1%	±1%	±1%	±1%
	Rated Current	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
	Current Range	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
	Rated Power	100W	102W	102W	100.5W	100W	99.9W	96W
	Ripple & Noise	8mVp-p	80mVp-p	100mVp-p	120mVp-p	120mVp-p	120mVp-p	150mVp-p
	DC Adjustment Range	+10,-5%	+10,-5%	±10%	±10%	±10%	±10%	±10%
	Setup, Rise, Hold Time	200ms,80ms,20ms at full load
INPUT	Voltage Range	88~132 VAC/176~264 VAC 47~63Hz selected by switch 240~370 VDC
	AC Current	2.4A/115V 1.2A/230V
	Efficiency	76%	77%	78%	76%	78%	78%	80%
	Inrush Current	Cold start 30A/115VAC 60A/230VAC
	Leakage Current	<1 mA/240VAC
PROTECTION	Over Load	110%~150%
PROTECTION	Over Load	Protection: Shut down o/p voltage, re-power on to recover
ENVIRONMENT	Working Temp., Humidity	-10℃~+60℃;20%~90 %RH
	Storage Temp., Humidity	-20℃~+85℃;10%~95%RH
	Vibration	10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
SAFETY	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
STANDARD	Safety Standard	Design refer to GB4943,UL60950,EN60950
STANDARD	EMC Standard	Design refer to EN55022,EN61000-3-2,EN61000-3-3,EN55024
OTHERS	Weight	0.61Kg
OTHERS	Packing	36pcs/22.5Kg/0.040CBM
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation.
